PROTEMP series enclosure coolers

The enclosure coolers of the PROTEMP series set new standards in efficiency and compactness while leveraging the proven advantages of Peltier technology. Available in various sizes and multiple performance levels, PROTEMP enclosure coolers are designed to require around 20% less installation space while delivering the same cooling capacity. This not only simplifies integration into control cabinets and electronic enclosures but also supports a resource-efficient and space-saving solution.

  • Reduced size

  • IP-67 protection

  • Optimal integration

  • Without cooling liquid

The advantages of the PROTEMP series

  • Powerful Peltier unit
  • Configurable external hoods
  • Protection against harsh environmental conditions
  • Integrated condensate drain
  • Low-noise operation
  • Extensive range of accessories

Looking for tailored advice?

Our team will support you in developing a tailored solution for your application.

Contact us

Executions

Thanks to a fundamental revision of the Peltier unit itself, far greater temperature differences can also be realized with the devices. This means that a more diverse range of applications can be covered and the application can be further decoupled from the prevailing ambient temperature.

The devices are available in various sizes with an output range of 45 to 220 watts at an input voltage of 24 volts. A flexible design concept also allows individual customer requirements to be met quickly and cost-effectively.

Of course, our latest and most innovative product series is complemented by a wide range of accessories and various configuration options, such as stainless steel covers or condensate drains.

Compact design

Refrigerant-free & maintenance-free

High protection rating

Precise temperature control

Technical Specifications Overview

ModelEnclosure sizeCooling capacity [L35/L35]SizesNoise emissionRated currentSupply voltage
PROTEMP 45Very small (S)45 W170 x 102 x 146 mm55 dB2,1 A50 W
PROTEMP 55Small and medium (M)56 W170 x 130 x 167 mm57 dB2,5 A61 W
PROTEMP 70Small and medium (M)74 W170 x 130 x 167 mm57 dB4,4 A108 W
PROTEMP 100Small and medium (M)100 W320 x 130 x 167 mm53 dB5,0 A119 W
PROTEMP 120Small and medium (M)120 W320 x 130 x 167 mm59 dB5,3 A128 W
PROTEMP 220Large (L)220 W400 x 175 x 225 mm68 dB13,0 A310 W
PROTEMP 45 SPROTEMP 55 | 70 MPROTEMP 100 | 120 MPROTEMP 220 L
Protemp S Long Compact Edelstahl

Peltier cooler PROTEMP 45 S

  • Cooling capacity (L35/L35): 45 W
  • Size: 170 x 102 x 146 mm
  • Operating temperature: -40 till 70°C
  • Protection class: IP67
  • Supply voltage: 24 V
  • Absorption capacity: 50 W

Please select the desired version.

Datasheet 45W

Send inquiry

Optimized cooling capacity with a small footprint

Our new PROTEMP appliance series offers the usual high efficiency and performance with a significantly smaller footprint. You benefit from cooling & heating operation, IP 67 standard and a wide range of hood variants & accessories for every application: From fully integrated assembly to sophisticated outdoor applications, our PROTEMP series appliances offer the solution for every application.

The PROTEMP series devices can be equipped with different cover variants: depending on the application, versions are available for salt-laden environments, heavily soiled environments, or with a reduced housing design for optimal integration. Thanks to their increased power density, our PROTEMP devices are among the most compact units on the market – completely refrigerant-free and maintenance-free.

1
2
1

IP-67 protection

Protection rating IP67 for maximum durability and longevity

2

Cooling capacity (L35 / L35)

PROTEMP 55: ca. 56 W / PROTEMP 70: ca. 74 W

PROTEMP applications

COMPACT

Equipped with a compact powder-coated aluminum cover for optimal integration into OEM applications.

The reduced space requirement enables maximum design flexibility even in the smallest installation spaces.

OUTDOOR

The fully enclosed external fan of the device provides protection against environmental influences, making it particularly suitable for outdoor applications.

The external fan is protected against mechanical impacts by a stainless steel cover, providing maximum protection while maintaining a sleek and unobtrusive appearance for the Peltier cooling solution.

OFFSHORE

For use in the most demanding environments, the outer cover is manufactured from attractive yet highly durable V4A stainless steel.

It also provides protection against salt-laden ambient air when the Peltier cooler is installed in coastal areas or on ships.

PROTEMP 55/70 M Compact

Peltier cooler PROTEMP 55 | 70 M

  • Cooling capacity (L35/L35): 56 W | 74 W
  • Size: 170 x 130 x 167 mm
  • Operating temperature: -40 till 70°C
  • Protection class: IP67
  • Supply voltage: 24 V
  • Absorption capacity: 61 W | 108 W

Please select the desired version.

Datasheet 55W

Send inquiry

Datasheet 70W

Send inquiry

Optimized cooling capacity with a small footprint

Our new PROTEMP appliance series offers the usual high efficiency and performance with a significantly smaller footprint. You benefit from cooling & heating operation, IP 67 standard and a wide range of hood variants & accessories for every application: From fully integrated assembly to sophisticated outdoor applications, our PROTEMP series appliances offer the solution for every application.

The PROTEMP series devices can be equipped with different cover variants: depending on the application, versions are available for salt-laden environments, heavily soiled environments, or with a reduced housing design for optimal integration. Thanks to their increased power density, our PROTEMP devices are among the most compact units on the market – completely refrigerant-free and maintenance-free.

1
2
1

IP-67 protection

Protection rating IP67 for maximum durability and longevity

2

Cooling capacity (L35 / L35)

PROTEMP 55: ca. 56 W / PROTEMP 70: ca. 74 W

PROTEMP applications

COMPACT

Equipped with a compact powder-coated aluminum cover for optimal integration into OEM applications.

The reduced space requirement enables maximum design flexibility even in the smallest installation spaces.

OUTDOOR

The fully enclosed external fan of the device provides protection against environmental influences, making it particularly suitable for outdoor applications.

The external fan is protected against mechanical impacts by a stainless steel cover, providing maximum protection while maintaining a sleek and unobtrusive appearance for the Peltier cooling solution.

OFFSHORE

For use in the most demanding environments, the outer cover is manufactured from attractive yet highly durable V4A stainless steel.

It also provides protection against salt-laden ambient air when the Peltier cooler is installed in coastal areas or on ships.

PROTEMP 120 | Compact

Peltier cooler PROTEMP 100 | 120 M

  • Cooling capacity (L35/L35): 100 W | 120 W
  • Size: 320 x 130 x 167 mm
  • Operating temperature: -40 till 70°C
  • Protection class: IP55 | IP67
  • Supply voltage: 24 V
  • Power input: 119 W | 128 W

Please select the desired version.

Datasheet 100W

Send inquiry

Datasheet 120W

Send inquiry

Optimized cooling capacity with a small footprint

Our new PROTEMP product series delivers the same high efficiency and performance as usual, while featuring a significantly reduced footprint. You benefit from both cooling and heating operation, IP55/IP67 protection ratings, and a wide range of cover variants and accessories for every application: from fully integrated assemblies to demanding outdoor environments, our PROTEMP devices provide the right solution for every use case.

The PROTEMP series devices can be equipped with different cover variants: depending on the application, versions are available for salt-laden environments, heavily contaminated environments, or with a reduced housing design for optimal integration. Thanks to their increased power density, our PROTEMP devices are among the most compact units on the market – completely refrigerant-free and maintenance-free.

1
2
1

IP-67 protection

Protection rating IP67 for maximum durability and longevity

2

Cooling capacity (L35/L35)

approx. 121 W

PROTEMP applications

COMPACT

Equipped with a compact powder-coated aluminum cover for optimal integration into OEM applications.

The reduced space requirement enables maximum design flexibility even in the smallest installation spaces.

OUTDOOR

The fully enclosed external fan of the device provides protection against environmental influences, making it particularly suitable for outdoor applications.

The external fan is also protected against mechanical impacts, providing maximum protection while maintaining an aesthetically pleasing and unobtrusive design of the Peltier cooling solution.

OFFSHORE

For use in the most demanding environments, the outer cover is manufactured from attractive yet highly durable V4A stainless steel.

It also provides protection against salt-laden ambient air when the Peltier cooler is installed in coastal areas or on ships.

Protemp L Long Alu weiß

Peltier cooler PROTEMP 220 L

  • Cooling capacity (L35/L35): 220 W
  • Dimensions: 400 × 175 × 225 mm
  • Operating temperature: -40 till 70°C
  • Protection class: IP67
  • Supply voltage: 24 V
  • Power input: 310 W

Please select the desired version.

Datasheet 220W

Send inquiry

Optimized cooling capacity with a small footprint

Our new PROTEMP product series delivers the same high efficiency and performance as usual, while featuring a significantly reduced footprint. You benefit from both cooling and heating operation, an IP67 protection rating, and a wide range of cover variants and accessories for every application: from fully integrated assemblies to demanding outdoor environments, the PROTEMP series provides the right solution for every use case.

Die Geräte der Serie PROTEMP können mit unterschiedlichen Haubenvarianten ausgestattet werden: Je nach Anwendungsfall sind so Ausführungen für salznebelhaltige Umgebungen, stark verschmutzte Umgebungen oder mit reduziertem Aufbau zur optimalen Integration erhältlich. Durch gesteigerte Leistungsdichte stellen unsere PROTEMP Geräte die kompaktesten Geräte am Markt dar: Ganz ohne Kältemittel und Wartungsaufwand.

1
2
1

IP-67 protection

Protection rating IP67 for maximum durability and longevity

2

Cooling capacity (L35/L35)

approx. 121 W

PROTEMP applications

COMPACT

Equipped with a compact powder-coated aluminum cover for optimal integration into OEM applications.

The reduced space requirement enables maximum design flexibility even in the smallest installation spaces.

OUTDOOR

The fully enclosed external fan of the device provides protection against environmental influences, making it particularly suitable for outdoor applications.

The external fan is also protected against mechanical impacts, providing maximum protection while maintaining an aesthetically pleasing and unobtrusive design of the Peltier cooling solution.

OFFSHORE

For use in the most demanding environments, the outer cover is manufactured from attractive yet highly durable V4A stainless steel.

It also provides protection against salt-laden ambient air when the Peltier cooler is installed in coastal areas or on ships.

Custom PROTEMP solutions

RAL Special Colour

PROTEMP Peltier systems can be supplied in custom RAL colours upon request. The units meet protection class IP67, ensuring reliable operation even under demanding conditions and enabling use in both outdoor and offshore environments.

The custom colour adaptation is available at an additional cost; however, it offers the advantage of allowing control cabinets and temperature control systems to be visually integrated in a harmonious way, without compromising protection or functionality.

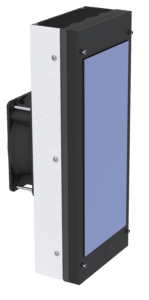

Surface Cooling

PROTEMP surface coolers are ideally suited for precise temperature control within control cabinets, targeting individual critical components. They deliver cooling performance exactly where it is needed—for example, at sensors, laser measurement technology, or test benches.

This ensures that critical components remain stable and operate reliably, while the overall temperature inside the control cabinet is kept constant.

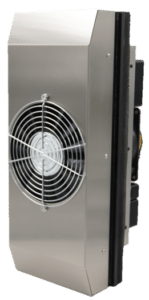

Low-Noise Design

For environments where low noise emissions are critical, the PROTEMP Silent model provides an exceptionally quiet solution.

With a noise level of below 55 dB, these Peltier systems operate comfortably and efficiently, making them ideally suited for laboratories, medical facilities, or occupied workplaces.

Catalog

Our PROTEMP series Peltier enclosure coolers are available in different versions. These ensure safe operation of your Peltier enclosure cooler in all environments: from OEM applications with minimal space requirements to use in highly corrosive environments such as those containing salt spray.

Other versions are available on request. Our team is always on hand to help you implement demanding projects: Our Peltier enclosure coolers are already in use in fully integrated solutions right up to sandstorm-loaded environments in desert regions.

Download catalog

Are you interested in our solutions?

Take advantage of our expertise and let us advise you.

Contact us

Application areas of the PROTEMP device coolers

Telecom housing

Telecom enclosures can be found all over the world in the most diverse locations and are therefore exposed to the most varied conditions. However, most enclosures have one thing in common: they sometimes house sensitive electronics in a compact space. Due to the limited space available and the need to cool the enclosures in the summer months and heat them in winter, Peltier temperature control units offer ideal conditions. The high requirements for operating temperature ranges and ambient conditions also make the use of Peltier technology indispensable in most cases.

Crane technology

It is hard to imagine production halls without cranes: they transport components in a wide range of weight classes and made from a wide variety of materials to ensure an efficient production process. What most cranes have in common is that they are not only mobile, but are also usually mounted at the top. As a result, they are exposed to high ambient conditions due to air accumulating under the hall ceiling. This problem is particularly aggravated in foundries or paper mills where, in addition to extremely high temperatures, there is also an extreme degree of contamination. However, such requirements can be safely met with the “HL” appliance series, which is not only designed for ambient temperatures of up to 90°C, but is also extremely robust against dirty air.

Mechanical engineering control enclosure

Machine control systems are often the heart of entire systems and production lines: If errors occur here, this can have serious consequences. In addition to the need for active cooling to protect the components, production halls are often subject to difficult conditions: Air containing dust, dirt, oil or water, as well as deposits created during production processes, can penetrate the enclosures and endanger installed components. Due to their principle, panel enclosure coolers work without active air exchange between the inside of the enclosure and the environment and at the same time ensure that the components are cooled.

Offshore applications

Due to the increasing importance of offshore wind farms, for example, applications with salty ambient air are becoming more and more relevant. However, well-known areas of application on ships or in electrical enclosures for systems near the coast also present challenging conditions: The salty ambient air damages materials through rapid corrosion in a short period of time until the systems fail. Active cooling using compressors is also sometimes not possible due to frequent changes of position and accelerations, for example on ships. Peltier enclosure coolers provide the solution here: due to their principle, they not only work independently of position and acceleration, but can also be manufactured in a salt spray-resistant design.

Test & measurement housing

Test and measurement enclosures require precise control of the prevailing conditions. Whether calibration, process monitoring or applications with high-precision measuring instruments: Such applications are usually sensitive to fluctuations in humidity and, in particular, temperature. This can falsify measurement results and thus produce inaccurate or incorrect results. Peltier housing temperature control units work with electricity as a direct control variable for their output. As a result of this and the possibility of cooling and heating operation in one device, high-precision temperature control can be achieved and enclosures with a temperature stability of less than 0.1 K can be realized.

Railroad technology

Applications in railroad technology require the highest quality standards in order to meet the requirements in terms of service life and robustness. In addition to the harsh environmental conditions with dust, dirt and even requirements for vandalism, large spreads in the ambient temperature are just some of the requirements. Peltier devices offer the advantage that they work reliably even with accelerations and changes in orientation. In addition, the principle-based reduction in the number of components offers considerable advantages in terms of the service life of the cooling unit.

Digital Signage

In the field of advertising technology, displays have become an integral part of our world: Information is transmitted in the shortest possible time and must not only be eye-catching, but also convey a memorable image, especially in the field of advertising technology. Screens used for this purpose generate more and more waste heat, which must be dissipated, especially when used outdoors. Outdoor steels, as used not only in advertising but also, for example, as guidance systems for traffic or people, are exposed to wind and weather all year round: Efficient temperature management can significantly increase the service life of the components, especially in such applications.
